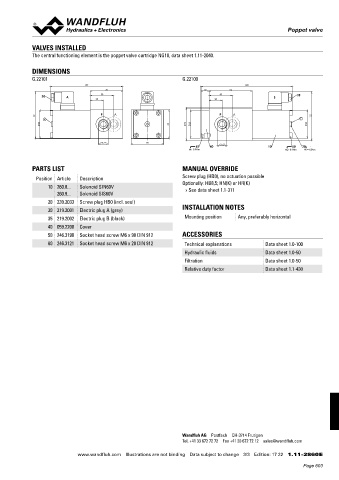

Page 603 - Softbound_Edition_19_en

G.2210
Poppet valve

VALVES INSTALLED
The central functioning element is the poppet valve cartridge NG10, data sheet 1.11-2040.

DIMENSIONS
G.22101 G.22100
157 198
70 18 93
30 A 50 50 B 35
28 28

101 105
E E
60 62 70 60 60

G1/2" 70 G1/2"
50
60
MD=8.9Nm 40 10 MD= 8.9Nm 20 MD=9.5Nm

PARTS LIST MANUAL OVERRIDE
Position Article Description Screw plug (HB0), no actuation possible
Optionally: HB8,5; HN(K) or HR(K)
10 260.8... Solenoid SIN60V → See data sheet 1.1-311
260.9... Solenoid SIS60V
20 239.2033 Screw plug HB0 (incl. seal)
30 219.2001 Electric plug A (grey) INSTALLATION NOTES
35 219.2002 Electric plug B (black) Mounting position Any, preferably horizontal
40 059.2200 Cover
50 246.3190 Socket head screw M6 x 90 DIN 912 ACCESSORIES
60 246.3121 Socket head screw M6 x 20 DIN 912 Technical explanations Data sheet 1.0-100
Hydraulic fluids Data sheet 1.0-50
Filtration Data sheet 1.0-50
Relative duty factor Data sheet 1.1-430

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]

www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 17 22 1.11-2860 E
