BH..04

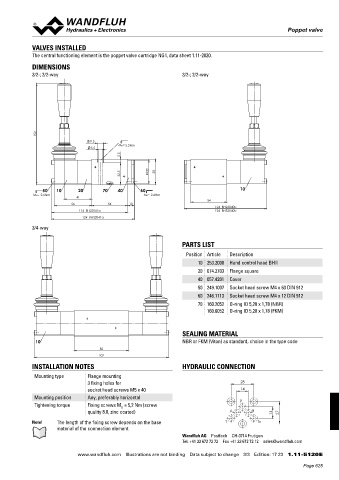

Poppet valve

VALVES INSTALLED
The central functioning element is the poppet valve cartridge NG4, data sheet 1.11-2020.

DIMENSIONS
3/2-; 2/2-way 3/2-; 2/2-way

152
9.5
MD= 5.2Nm
5.5
5.5

35
32.5 38

50 10 20 70 40 60 10
MD= 2.6Nm MD= 2.6Nm
41
54
56 54 10
124 BH22040b
114 BH22041a 124 BH32040b
124 BH32041a

3/4-way

PARTS LIST
Position Article Description
10 253.2000 Hand control head BHII
20 074.2703 Flange square
40 057.4201 Cover
50 249.1007 Socket head screw M4 x 63 DIN 912
60 246.1113 Socket head screw M4 x 12 DIN 912
70 160.2052 O-ring ID 5,28 x 1,78 (NBR)
160.6052 O-ring ID 5,28 x 1,78 (FKM)

SEALING MATERIAL
10 NBR or FKM (Viton) as standard, choice in the type code
82
202

INSTALLATION NOTES HYDRAULIC CONNECTION
Mounting type Flange mounting
3 fixing holes for 28
socket head screws M5 x 40 14
Mounting position Any, preferably horizontal
Tightening torque Fixing screws M = 5,2 Nm (screw P
D
quality 8.8, zinc coated) A B 14 27
Note! The length of the fixing screw depends on the base T T0
material of the connection element.

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]

www.wandfluh.com Illustrations are not binding Data subject to change 3/3 Edition: 17 23 1.11-5120 E
