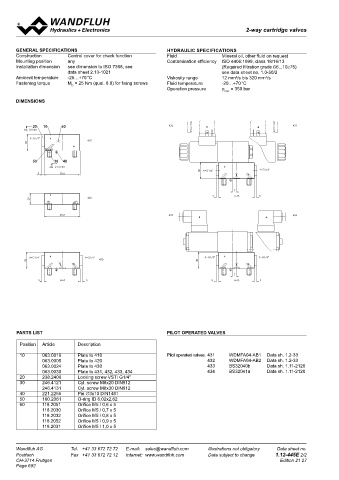

P. 692

2-way cartridge valves
                                                                                      2-2-way slip-in cartridge                                                                                                    2-2-way slip-in cartridge

       GENERAL SPECIFICATIONS                               HYDRAULIC SPECIFICATIONS                                               Control cover                                  NG 25
       Construction      Control cover for check function   Fluid              Mineral oil, other fluid on request                 for check function
       Mounting position   any                              Contamination efficiency  ISO 4406:1999, class 18/16/13                                                               ISO 7368
       Installation dimension   see dimension to ISO 7368, see                 (Required filtration grade ß6...10≥75)              • p max  = 350 bar
                         data sheet 2.13-1021                                  see data sheet no. 1.0-50/2
       Ambient temperature   -25…+70 °C                     Viskosity range    12 mm /s bis 320 mm /s
                                                                                    2
                                                                                              2
       Fastening torque   M  = 25 Nm (qual. 8.8) for fixing screws  Fluid temperature   -20…+70 °C
                          D
                                                            Operation pressure   p   = 350 bar
                                                                                max
       DIMENSIONS
                                                                                                                                     Non-return function                 Non-return function in combination with    Non-return function for control via X or Y
                                                                                                                                                                         CS..-10/...-C7                     with integrated shuttle valve
    1             2             3             4            5             6             7             8
             20  10    60                                   432          B                 A            431
          MD=18 Nm
 A                                                                                                          A
           X=G1/4"              410
           30


             50     30  40
                  MD=21.5 Nm
                                                                        30   X=G1/4"        Y=G1/4"
               5         65
 B                                                                                                          B
                                                                                    7                                                With integrated shuttle valve (430) and additional pilot valve (431... 434)
                                                                            5         65     5
            20                  420

                         65                                 433                                         434
                                                                       B                      A
 C                                                                                                          C





           X=G1/4"             Y=G1/4"                                   X=G1/4"            Y=G1/4"
           30                       430                                30
 D                                                                                                          D
                                                                                    7
               5         65     5                                           5         65     5




                                                                                                 Gezeichnet  03.02.2016  BEH
 E                                                                      01  12.02.2016  BEH     Alle Varianten auf Datenblatt dargestellt  Geprüft  11.11.2016  KL  E
                                                                        02  07.11.2016  BEH     O-Ringe eingeblendet, Symbol dazu  Freigegeben  14.11.2016  TK  TYPE CODE
                                                                        Rev.  Datum  Name Änderungsnr.  Änderungsbeschrieb  M 1:1  Serie freigegeben
                                                                                                         Gewicht
                                                                        CS-Deckel NG16           Ersetzt durch:   1.814 kg
                                                                                                 Ersatz für:
                                                                        D16.../W                 Dok.-Nr.  0192453  Format                                                                               D     25      -                           /        #
                                                                                                          A2
                                                                                  Dokument darf ohne schriftliche Einwilligung weder kopiert,  Art.-Nr.  Revision
                                                                                  verwertet noch an Dritte weitergegeben werden.  DB 1.12-445  02  Control cover
                                                                                        C:\00_Wand uh\Verkauf\Dokumentation\Reg1.12\DB 1.12-445\0192453
    1  PARTS LIST  2            3             4            5 PILOT OPERATED VALVES  Zuwiderhandlung ist strafbar und wird gerichtlich verfolgt.  Blatt 1 von 1
                                                                                                                                   Nominal size 25
         Position   Article   Description                                                                                          Pilot no. 410...434
                                                                                                                                   Solenoid type for pilot valve
         10     063.0016    Plate to 410                    Pilot operated valves: 431   WDMFA04-AB1  Data sh. 1.2-33              Standard    431, 432              M  .. / VD (only G12 and G24)
                063.0005    Plate to 420                                  432    WDMFA04-AB2  Data sh. 1.2-33                                                        M  .. / ND
                063.0024    Plate to 430                                  433    BS32040b      Data sh. 1.11-2120                              433, 434              S
                063.0030    Plate to 431, 432, 433, 434                   434    BS32041a      Data sh. 1.11-2120                  Nominal voltage U      12 VDC     G12              115 VAC     R115
         20     238.2406    Locking screw VSTI G1/4"                                                                                            N         24 VDC     G24              230 VAC     R230
         30     246.4121    Cyl. screw M8x20 DIN912
                246.4131    Cyl. screw M8x30 DIN912                                                                                Orifice in cover       0.6 mm     0.6
         40     221.2255    Pin ∅3x10 DIN1481                                                                                                             1.0 mm     1.0   etc.
         50     160.2061    O-ring ID 6,02x2,62                                                                                    Omit if without orifice
         60     118.2051    Orifice M5 / 0,6 x 5                                                                                   Design-Index (Subject to change)
                118.2030    Orifice M5 / 0,7 x 5
                118.2032    Orifice M5 / 0,8 x 5
                118.2052    Orifice M5 / 0,9 x 5
                118.2031    Orifice M5 / 1,0 x 5
       Wandfluh AG        Tel.  +41 33 672 72 72   E-mail:  [email protected]   Illustrations not obligatory   Data sheet no.     Wandfluh AG         Tel.  +41 33 672 72 72   E-mail:  [email protected]   Illustrations not obligatory   Data sheet no.
       Postfach           Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.12-445E 2/2             Postfach            Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.12-450E 1/2
       CH-3714 Frutigen                                                                            Edition 21 27                   CH-3714 Frutigen                                                                             Edition 21 27
