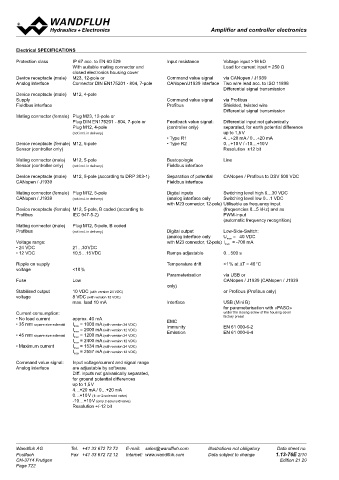

Page 722 - Softbound_Edition_19_en

Amplifier and controller electronics
Amplifier / controller electronics

Electrical SPECIFICATIONS

Protection class IP 67 acc. to EN 60 529 Input resistance Voltage input >18 kΩ
With suitable mating connector and Load for current input = 250 Ω
closed electronics housing cover
Device receptacle (male) M23, 12-pole or Command value signal via CANopen / J1939
Analog interface Connector DIN EN175201 - 804, 7-pole CANopen/J1939 interface Two wire lead acc. to ISO 11898
Differential signal transmission
Device receptacle (male) M12, 4-pole
Supply Command value signal via Profibus
Fieldbus interface Profibus Shielded, twisted wire
Differential signal transmission
Mating connector (female) Plug M23, 12-pole or
Plug DIN EN175201 - 804, 7-pole or Feedback value signal: Differential input not galvanically
Plug M12, 4-pole (controller only) separated, for earth potential difference
(not incl. in delivery) up to 1,5 V
• Type R1 4…+20 mA / 0…+20 mA
Device receptacle (female) M12, 5-pole • Type R2 0…+10 V / -10…+10 V
Sensor (controller only) Resolution ±12 bit
Mating connector (male) M12, 5-pole Bustopologie Line
Sensor (controller only) (not incl. in delivery) Fieldbus interface
Device receptacle (male) M12, 5-pole (according to DRP 303-1) Separation of potential CANopen / Profibus to DSV 500 VDC
CANopen / J1939 Fieldbus interface

Mating connector (female) Plug M12, 5-pole Digital inputs Switching level high 6…30 VDC
CANopen / J1939 (not incl. in delivery) (analog interface only Switching level low 0…1 VDC
with M23 connector, 12-pole) Utilisable as frequency input
Device receptacle (female) M12, 5-pole, B coded (according to (frequencies 0...5 kHz) and as
Profibus IEC 947-5-2) PWM-input
(automatic frequency recognition)
Mating connector (male) Plug M12, 5-pole, B coded
Profibus (not incl. in delivery) Digital output Low-Side-Switch:
(analog interface only U max = 40 VDC
Voltage range: with M23 connector, 12-pole) I max = -700 mA
• 24 VDC 21…30 VDC
• 12 VDC 10,5…15 VDC Ramps adjustable 0…500 s
Ripple on supply Temperature drift <1 % at ∆T = 40 °C
voltage <10 %
Parameterisation via USB or
Fuse Low CANopen / J1939 (CANopen / J1939
only)
Stabilised output 10 VDC (with version 24 VDC) or Profibus (Profibus only)
voltage 8 VDC (with version 12 VDC)
max. load 10 mA Interface USB (Mini B)
for parameterisation with «PASO»
Current consumption: under the closing screw of the housing cover
• No load current approx. 40 mA EMC factory preset
• 35 mm square size solenoid I max = 1000 mA (with version 24 VDC)
I max = 2000 mA (with version 12 VDC) Immunity EN 61 000-6-2
Emission
EN 61 000-6-4
• 45 mm square size solenoid I max = 1200 mA (with version 24 VDC)
I max = 2400 mA (with version 12 VDC)
• Maximum current I max = 1534 mA (with version 24 VDC)
I max = 2557 mA (with version 12 VDC)
Command value signal: Input voltage/current and signal range
Analog interface are adjustable by software.
Diff. inputs not galvanically separated,
for ground potential differences
up to 1,5 V
4…+20 mA / 0…+20 mA
0…+10 V (1- or 2-solenoid valve)
-10…+10 V (only 2-solenoid valve)
Resolution +/-12 bit
