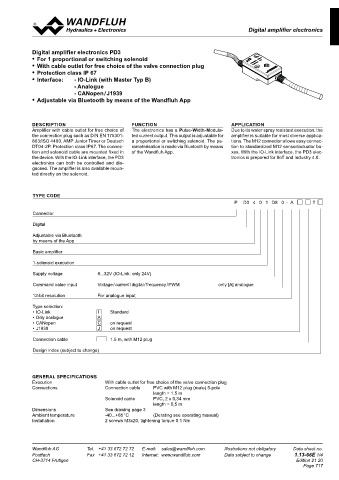

Digital amplifier electronics
Digital amplifier electronics PD3
C
3.3
Digital amplifier electronics PD3
• For 1 proportional or switching solenoid 6.1
• With cable outlet for free choice of the valve connection plug
• Protection class IP 67
• Interface: - IO-Link (with Master Typ B)
- Analogue
- CANopen / J1939
• Adjustable via Bluetooth by means of the Wandfluh App
Gezeichnet 20.02.2019 BEH
Geprüft 21.07.2020 FA
D 01 01.07.2020 SMI Bemassung Langlöcher geändert Freigegeben 21.07.2020 TK
Rev. Datum Name Änderungsnr. Änderungsbeschrieb M 1:1 Serie freigegeben Modellreferenz: Doknr. 0247162 / Konfiguration 002
DESCRIPTION FUNCTION APPLICATION Steckerverstärker Ersetzt durch: Gewicht
Amplifier with cable outlet for free choice of The electronics has a Pulse-Width-Modula- Due to its water spray resistant execution, the Ersatz für: 0.017 kg
the connection plug such as DIN EN 175301- ted current output. This output is adjustable for amplifier is suitable for most diverse applica- PD3401D80-AI Dok.-Nr. 0247390 Format
A3
803/ISO 4400, AMP Junior Timer or Deutsch a proportional or switching solenoid. The pa- tions. The M12 connector allows easy connec-
DT04-2P. Protection class IP67. The connec- rameterisation is made via Bluetooth by means tion to standardized M12 sensor/actuator bo- Dokument darf ohne schriftliche Einwilligung weder kopiert, Art.-Nr. DB 1.13-66 Revision
01
verwertet noch an Dritte weitergegeben werden.
tion and solenoid cable are mounted fixed in of the Wandfluh App. 1 xes. With the IO-Link interface, the PD3 elec- Zuwiderhandlung ist strafbar und wird gerichtlich verfolgt. Blatt 1 von 1
2
C:\00_Wandfluh\Verkauf\Dokumentation\Reg1.13\DB 1.13-66\0247390
the device. With the IO-Link interface, the PD3 tronics is prepared for IIoT and Industry 4.0.
electronics can both be controlled and dia-
gnosed. The amplifier is also available moun-
ted directly on the solenoid.
TYPE CODE
P D3 4 0 1 D8 0 - A #
Connector
Digital

Adjustable via Bluetooth
by means of the App
Basic amplifier

1-solenoid execution
Supply voltage 8...32V (IO-Link: only 24V)

Command value input Voltage / current / digital / frequency / PWM only [A] analogue
12-bit resolution For analogue input
Type selection:
• IO-Link I Standard
• Only analogue A
• CANopen C on request
• J1939 J on request

Connection cable 1.5 m, with M12 plug
Design index (subject to change)

GENERAL SPECIFICATIONS
Execution With cable outlet for free choice of the valve connection plug
Connections Connection cable PVC with M12 plug (male) 5-pole
length = 1.5 m
Solenoid cable PVC, 2 x 0,34 mm
length = 0,5 m
Dimensions See drawing page 3
Ambient temperature -40...+85 °C (Derating see operating manual)
Installation 2 screws M3x20, tightening torque 0.1 Nm

Wandfluh AG Tel. +41 33 672 72 72 E-mail: [email protected] Illustrations not obligatory Data sheet no.
Postfach Fax +41 33 672 72 12 Internet: www.wandfluh.com Data subject to change 1.13-66E 1/4
CH-3714 Frutigen Edition 21 20
