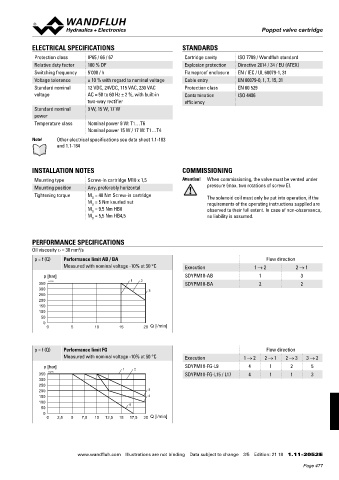

Page 477 - Softbound_Edition_19_en

Poppet valve
Poppet valve cartridge

ELECTRICAL SPECIFICATIONS STANDARDS
Protection class IP65 / 66 / 67 Cartridge cavity ISO 7789 / Wandfluh standard
Relative duty factor 100 % DF Explosion protection Directive 2014 / 34 / EU (ATEX)
Switching frequency 5'000 / h Flameproof enclosure EN / IEC / UL 60079-1, 31
Voltage tolerance ± 10 % with regard to nominal voltage Cable entry EN 60079-0, 1, 7, 15, 31
Standard nominal 12 VDC, 24VDC, 115 VAC, 230 VAC Protection class EN 60 529
voltage AC = 50 to 60 Hz ± 2 %, with built-in Contamination ISO 4406
two-way rectifier efficiency
Standard nominal 9 W, 15 W, 17 W
power
Temperature class Nominal power 9 W: T1…T6
Nominal power 15 W / 17 W: T1…T4
Note! Other electrical specifications see data sheet 1.1-183
and 1.1-184

INSTALLATION NOTES COMMISSIONING

Mounting type Screw-in cartridge M18 x 1,5 Attention! When commissioning, the valve must be vented under
Mounting position Any, preferably horizontal pressure (max. two rotations of screw E).
Tightening torque M = 40 Nm Screw-in cartridge
D The solenoid coil must only be put into operation, if the
M = 5 Nm knurled nut
D requirements of the operating instructions supplied are
M = 9,5 Nm HB0 observed to their full extent. In case of non-observance,
D
M = 5,5 Nm HB4,5 no liability is assumed.
D

PERFORMANCE SPECIFICATIONS
Oil viscosity u = 30 mm /s
2
p = f (Q) Performance limit AB / BA Flow direction
Measured with nominal voltage -10% at 50 °C Execution 1 → 2 2 → 1
p [bar] SDYPM18-AB 1 3
350 K4243 1 2 SDYPM18-BA 2 2
300 3
250
200
150
100
50
0
0 5 10 15 20 Q [l/min]

p = f (Q) Performance limit FG Flow direction
Measured with nominal voltage -10% at 50 °C Execution 1 → 2 2 → 1 2 → 3 3 → 2

p [bar] 1 2 SDYPM18-FG-L9 4 1 2 5
350 K4244 SDYPM18-FG-L15 / L17 4 1 1 3
300
250
200 3
150 4
100 5
50
0
0 2,5 5 7,5 10 12,5 15 17,5 20 Q [l/min]

www.wandfluh.com Illustrations are not binding Data subject to change 3/5 Edition: 21 18 1.11-2052 E
