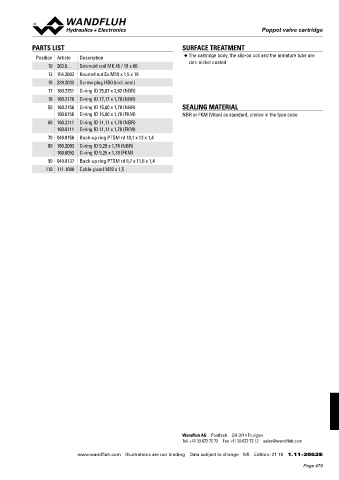

Poppet valve
Poppet valve cartridge

PARTS LIST SURFACE TREATMENT
Position Article Description ◆ The cartridge body, the slip-on coil and the armature tube are
zinc-nickel coated
10 263.6... Solenoid coil MK.45 / 18 x 60
12 154.2603 Knurled nut Ex M18 x 1,5 x 18
15 239.2033 Screw plug HB0 (incl. seal)
17 160.2251 O-ring ID 25,07 x 2,62 (NBR)
18 160.2170 O-ring ID 17,17 x 1,78 (NBR)
50 160.2156 O-ring ID 15,60 x 1,78 (NBR) SEALING MATERIAL
160.6156 O-ring ID 15,60 x 1,78 (FKM) NBR or FKM (Viton) as standard, choice in the type code
60 160.2111 O-ring ID 11,11 x 1,78 (NBR)
160.6111 O-ring ID 11,11 x 1,78 (FKM)
70 049.8156 Back-up ring PTSM rd 10,1 x 13 x 1,4
80 160.2093 O-ring ID 9,25 x 1,78 (NBR)
160.6092 O-ring ID 9,25 x 1,78 (FKM)
90 049.8137 Back-up ring PTSM rd 8,7 x 11,6 x 1,4
110 111.1080 Cable gland M20 x 1,5

Wandfluh AG Postfach CH-3714 Frutigen
Tel. +41 33 672 72 72 Fax +41 33 672 72 12 [email protected]

www.wandfluh.com Illustrations are not binding Data subject to change 5/5 Edition: 21 18 1.11-2052 E
