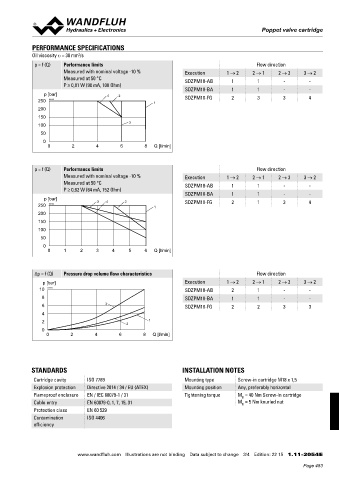

Poppet valve
Poppet valve cartridge

PERFORMANCE SPECIFICATIONS
Oil viscosity u = 30 mm /s
2
p = f (Q) Performance limits Flow direction
Measured with nominal voltage -10 % Execution 1 → 2 2 → 1 2 → 3 3 → 2
Measured at 50 °C SDZPM18-AB 1 1 - -
P ≥ 0,81 W (90 mA, 100 Ohm)
SDZPM18-BA 1 1 - -
p [bar] 4 2
250 K4142 1 SDZPM18-FG 2 3 3 4
200
150
100 3
50
0
0 2 4 6 8 Q [l/min]

p = f (Q) Performance limits Flow direction
Measured with nominal voltage -10 % Execution 1 → 2 2 → 1 2 → 3 3 → 2
Measured at 50 °C SDZPM18-AB 1 1 - -
P ≥ 0,62 W (64 mA, 152 Ohm)
SDZPM18-BA 1 1 - -
p [bar]
250 K4143 3 4 2 1 SDZPM18-FG 2 1 3 4
200
150
100
50
0
0 1 2 3 4 5 6 Q [l/min]

∆p = f (Q) Pressure drop volume flow characteristics Flow direction
p [bar] Execution 1 → 2 2 → 1 2 → 3 3 → 2
10 K4144 SDZPM18-AB 2 1 - -
8 SDZPM18-BA 1 1 - -
6 3 SDZPM18-FG 2 2 3 3
4
2 2 1
0
0 2 4 6 8 Q [l/min]

STANDARDS INSTALLATION NOTES
Cartridge cavity ISO 7789 Mounting type Screw-in cartridge M18 x 1,5
Explosion protection Directive 2014 / 34 / EU (ATEX) Mounting position Any, preferably horizontal
Flameproof enclosure EN / IEC 60079-1 / 31 Tightening torque M = 40 Nm Screw-in cartridge
D
Cable entry EN 60079-0, 1, 7, 15, 31 M = 5 Nm knurled nut
D
Protection class EN 60 529
Contamination ISO 4406
efficiency

www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 22 15 1.11-2054 E
