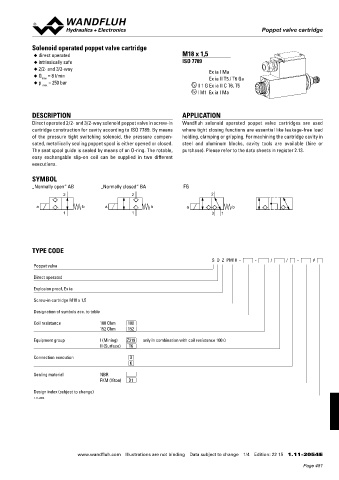

Poppet valve
Poppet valve cartridge

Solenoid operated poppet valve cartridge
◆ direct operated M18 x 1,5
◆ intrinsically safe ISO 7789
◆ 2/2- and 3/2-way Ex ia I Ma
◆ Q = 8 l/min Ex ia II T5 / T6 Ga
max
◆ p = 250 bar
max xII 1 G Ex ia II C T6, T5
xI M1 Ex ia I Ma

DESCRIPTION APPLICATION
Direct operated 2/2- and 3/2-way solenoid poppet valve in screw-in Wandfluh solenoid operated poppet valve cartridges are used
cartridge construction for cavity according to ISO 7789. By means where tight closing functions are essential like leakage-free load
of the pressure tight switching solenoid, the pressure compen- holding, clamping or gripping. For machining the cartridge cavity in
sated, metallically sealing poppet spool is either opened or closed. steel and aluminum blocks, cavity tools are available (hire or

The seat spool guide is sealed by means of an O-ring. The rotable, purchase). Please refer to the data sheets in register 2.13.
easy exchangable slip-on coil can be supplied in two different

executions.

SYMBOL
„Normally open“ AB „Normally closed“ BA FG
2 2 2

a b a b a b
1 1 3 1

TYPE CODE
S D Z PM18 - - / / - #
Poppet valve
Direct operated

Explosion proof, Ex ia
Screw-in cartridge M18 x 1,5

Designation of symbols acc. to table
Coil resistance 100 Ohm 100
152 Ohm 152

Equipment group I (Mining) Z319 only in combination with coil resistance 100 Ω
II (Surface) T6

Connection execution D
K

Sealing material NBR
FKM (Viton) D1
Design index (subject to change)
1.11-2054
