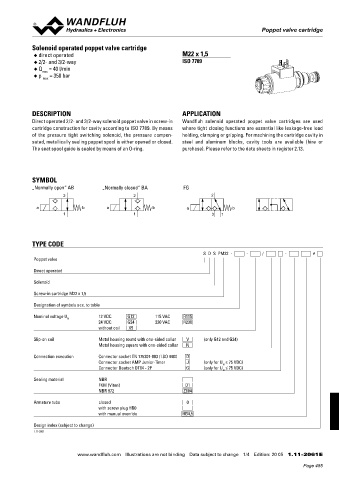

Poppet valve
Poppet valve cartridge

Solenoid operated poppet valve cartridge
◆ direct operated M22 x 1,5
◆ 2/2- and 3/2-way ISO 7789
◆ Q = 40 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated 2/2- and 3/2-way solenoid poppet valve in screw-in Wandfluh solenoid operated poppet valve cartridges are used
cartridge construction for cavity according to ISO 7789. By means where tight closing functions are essential like leakage-free load
of the pressure tight switching solenoid, the pressure compen- holding, clamping or gripping. For machining the cartridge cavity in
sated, metallically sealing poppet spool is either opened or closed. steel and aluminum blocks, cavity tools are available (hire or

The seat spool guide is sealed by means of an O-ring. purchase). Please refer to the data sheets in register 2.13.
SYMBOL
„Normally open“ AB „Normally closed“ BA FG
2 2 2

a b a b a b
1 1 3 1

TYPE CODE
S D S PM22 - - / - #
Poppet valve

Direct operated
Solenoid

Screw-in cartridge M22 x 1,5
Designation of symbols acc. to table

Nominal voltage U 12 VDC G12 115 VAC R115
N
24 VDC G24 230 VAC R230
without coil X5
Slip-on coil Metal housing round with one-sided collar V (only G12 and G24)
Metal housing square with one-sided collar N

Connection execution Connector socket EN 175301-803 / ISO 4400 D
Connector socket AMP Junior-Timer J (only for U ≤ 75 VDC)
N
Connector Deutsch DT04 - 2P G (only for U ≤ 75 VDC)
N
Sealing material NBR
FKM (Viton) D1
NBR 872 Z604

Armature tube closed 0
with screw plug HB0
with manual override HB4,5
Design index (subject to change)
1.11-2061
