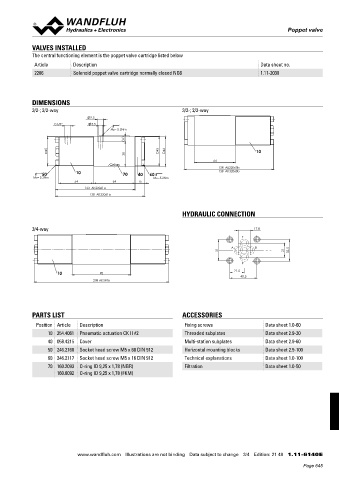

Page 645 - Softbound_Edition_19_en

Poppet valve
Poppet valve

VALVES INSTALLED
The central functioning element is the poppet valve cartridge listed below

Article Description Data sheet no.
2206 Solenoid poppet valve cartridge normally closed NG6 1.11-2030

DIMENSIONS
3/2-; 2/2-way 3/2-; 2/2-way
9.5
G1/8" 5.5
MD= 5.2Nm
8
45 45 46 10
38

64
138 AK22060b
50 10 70 40 60 138 AK32060b
MD= 5.2Nm MD=5.2Nm
54 64 15
123 AK22061a
138 AK32061a

HYDRAULIC CONNECTION

3/4-way 17.8
T
A B
31 21 32.5
P
10 90 21.5
40.5
208 AK3406

PARTS LIST ACCESSORIES
Position Article Description Fixing screws Data sheet 1.0-60
10 254.4061 Pneumatic actuation CK II #2 Threaded subplates Data sheet 2.9-30
40 058.4215 Cover Multi-station subplates Data sheet 2.9-60
50 246.2160 Socket head screw M5 x 60 DIN 912 Horizontal mounting blocks Data sheet 2.9-100
60 246.2117 Socket head screw M5 x 16 DIN 912 Technical explanations Data sheet 1.0-100
70 160.2093 O-ring ID 9,25 x 1,78 (NBR) Filtration Data sheet 1.0-50
160.6092 O-ring ID 9,25 x 1,78 (FKM)

www.wandfluh.com Illustrations are not binding Data subject to change 3/4 Edition: 21 48 1.11-6140 E
