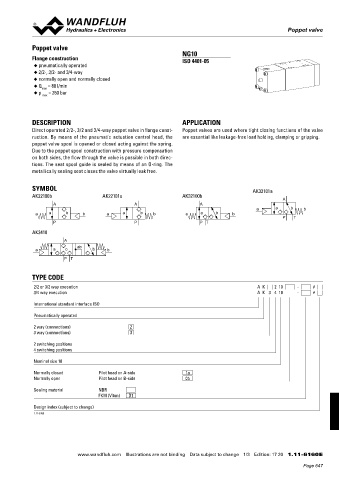

Poppet valve
Poppet valve

Poppet valve
NG10
Flange construction ISO 4401-05
◆ pneumatically operated
◆ 2/2-, 3/2- and 3/4-way
◆ normally open and normally closed
◆ Q = 80 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated 2/2-, 3/2 and 3/4-way poppet valve in flange const- Poppet valves are used where tight closing functions of the valve
ruction. By means of the pneumatic actuation control head, the are essential like leakage-free load holding, clamping or gripping.
poppet valve spool is opened or closed acting against the spring.
Due to the poppet spool construction with pressure compensation
on both sides, the flow through the valve is possible in both direc-
tions. The seat spool guide is sealed by means of an O-ring. The
metallically sealing seat closes the valve virtually leak free.

SYMBOL AK32101a
AK22100b AK22101a AK32100b
A
A A A
a a b b
a a b b a a b b a a b b
P T
P P P T

AK3410
A
ab
a a o b b
P T

TYPE CODE
2/2 or 3/2 way execution A K 2 10 - #
3/4 way execution A K 3 4 10 - #
International standard interface ISO
Pneumatically operated

2 way (connections) 2
3 way (connections) 3

2 switching positions
4 switching positions
Nominal size 10

Normally closed Pilot head on A-side 1a
Normally open Pilot head on B-side 0b

Sealing material NBR
FKM (Viton) D1

Design index (subject to change)
1.11-6160

www.wandfluh.com Illustrations are not binding Data subject to change 1/3 Edition: 17 20 1.11-6160 E
