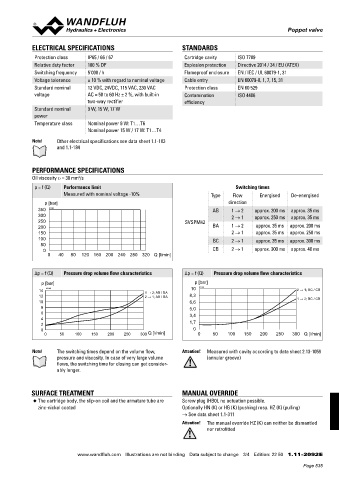

Poppet valve
                                                                                                      Poppet valve


            ELECTRICAL SPECIFICATIONS                            STANDARDS
             Protection class   IP65 / 66 / 67                    Cartridge cavity   ISO 7789
             Relative duty factor  100 % DF                       Explosion protection  Directive 2014 / 34 / EU (ATEX)
             Switching frequency  5'000 / h                       Flameproof enclosure  EN / IEC / UL 60079-1, 31
             Voltage tolerance  ± 10 % with regard to nominal voltage  Cable entry   EN 60079-0, 1, 7, 15, 31
             Standard nominal   12 VDC, 24VDC, 115 VAC, 230 VAC   Protection class   EN 60 529
             voltage            AC = 50 to 60 Hz ± 2 %, with built-in   Contamination   ISO 4406
                                two-way rectifier                 efficiency
             Standard nominal   9 W, 15 W, 17 W
             power
             Temperature class  Nominal power 9 W: T1…T6
                                Nominal power 15 W / 17 W: T1…T4
            Note!    Other electrical specifications see data sheet 1.1-183
                     and 1.1-184


            PERFORMANCE SPECIFICATIONS
            Oil viscosity u = 30 mm /s
                             2
             p = f (Q)  Performance limit                                           Switching times
                       Measured with nominal voltage -10%                  Type    Flow     Energised  De-energised
                 p [bar]                                                         direction
              350  K1149                                                    AB    1 → 2   approx. 200 ms  approx. 35 ms
              300                                                                 2 → 1   approx. 250 ms  approx. 35 ms
              250                                                 SVSPM42
              200                                                           BA    1 → 2    approx. 35 ms  approx. 200 ms
              150                                                                 2 → 1    approx. 35 ms  approx. 250 ms
              100                                                           BC    2 → 1    approx. 35 ms  approx. 300 ms
               50
                0                                                           CB    2 → 1   approx. 300 ms  approx. 40 ms
                  0   40   80  120  160 200 240 280 320  Q [l/min]

             ∆p = f (Q)  Pressure drop volume flow characteristics  ∆p = f (Q)  Pressure drop volume flow characteristics
                p [bar]                                              p [bar]
               14  K1148                            1 → 2; AB / BA  10  K1148                            2 → 1; BC / CB
               12                                   2 → 1; AB / BA  8,3                                  1 → 2; BC / CB
               10                                                   6,6
               8                                                    5,0
               6                                                    3,4
               4
               2                                                    1,7
               0                                                     0
                 0    50   100   150   200   250  300  Q [l/min]       0    50   100   150  200   250   300 Q [l/min]

            Note!    The switching times depend on the volume flow,   Attention!  Measured with cavity according to data sheet 2.13-1059
                     pressure and viscosity. In case of very large volume   (annular groove)
                     flows, the switching time for closing can get consider-
                     ably longer.



            SURFACE TREATMENT                                    MANUAL OVERRIDE
             ◆  The cartridge body, the slip-on coil and the armature tube are   Screw plug (HB0), no actuation possible.
              zinc-nickel coated                                 Optionally HN (K) or HG (K) (pushing) resp. HZ (K) (pulling)
                                                                 → See data sheet 1.1-311
                                                                 Attention!  The manual override HZ (K) can neither be dismantled
                                                                          nor retrofitted




                            www.wandfluh.com  Illustrations are not binding  Data subject to change  3/4  Edition: 22 50  1.11-2092 E
