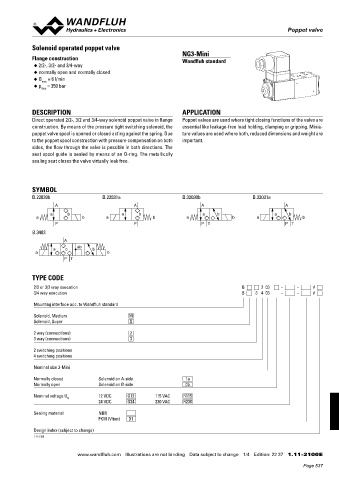

Poppet valve
Poppet valve

Solenoid operated poppet valve
NG3-Mini
Flange construction Wandfluh standard
◆ 2/2-, 3/2- and 3/4-way
◆ normally open and normally closed
◆ Q = 6 l/min
max
◆ p = 350 bar
max

DESCRIPTION APPLICATION
Direct operated 2/2-, 3/2 and 3/4-way solenoid poppet valve in flange Poppet valves are used where tight closing functions of the valve are
construction. By means of the pressure tight switching solenoid, the essential like leakage-free load holding, clamping or gripping. Minia-
poppet valve spool is opened or closed acting against the spring. Due ture values are used where both, reduced dimensions and weight are

to the poppet spool construction with pressure compensation on both important.
sides, the flow through the valve is possible in both directions. The
seat spool guide is sealed by means of an O-ring. The metallically

sealing seat closes the valve virtually leak free.

SYMBOL
B.22030b B.22031a B.32030b B.32031a
A A A A
a b a b a b a b
a b a b a b a b
P P P T P T

B.3403
A
ab
a o b
a b
P T

TYPE CODE
2/2 or 3/2 way execution B 2 03 - - #
3/4 way execution B 3 4 03 - - #
Mounting interface acc. to Wandfluh standard

Solenoid, Medium M
Solenoid, Super S
2 way (connections) 2
3 way (connections) 3
2 switching positions
4 switching positions

Nominal size 3-Mini
Normally closed Solenoid on A-side 1a
Normally open Solenoid on B-side 0b
Nominal voltage U 12 VDC G12 115 VAC R115
N
24 VDC G24 230 VAC R230
Sealing material NBR
FKM (Viton) D1

Design index (subject to change)
1.11-2100
